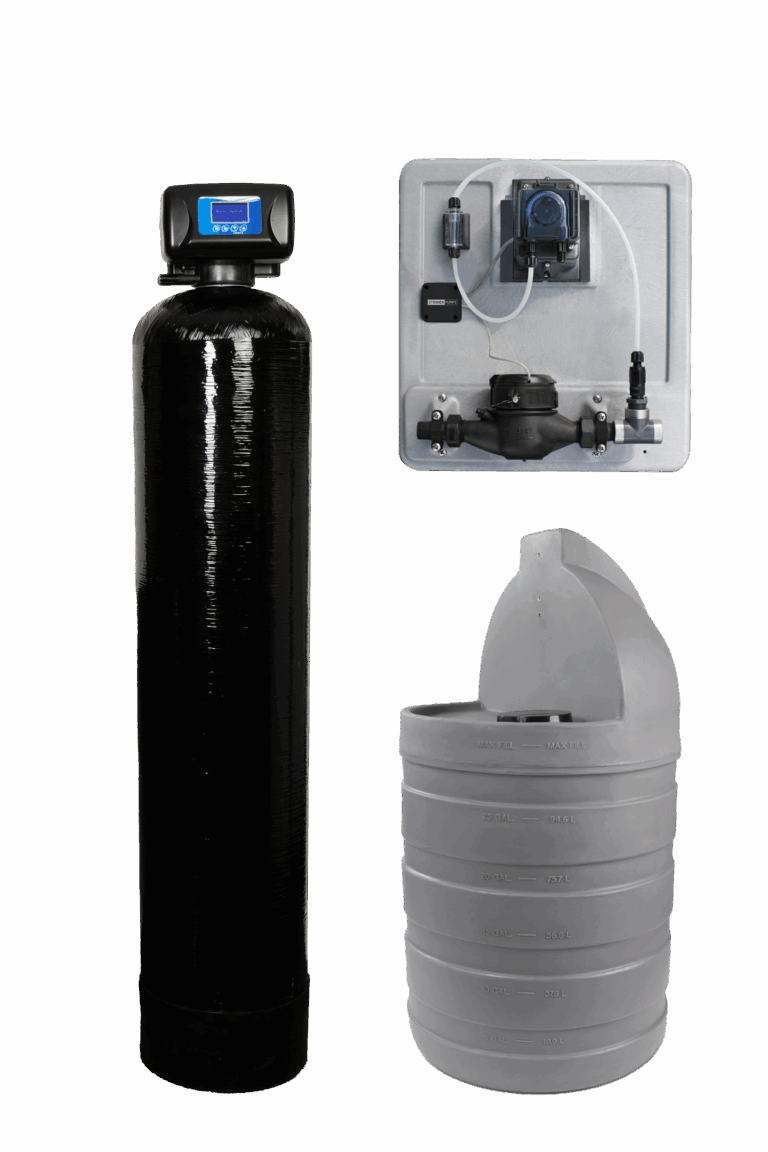

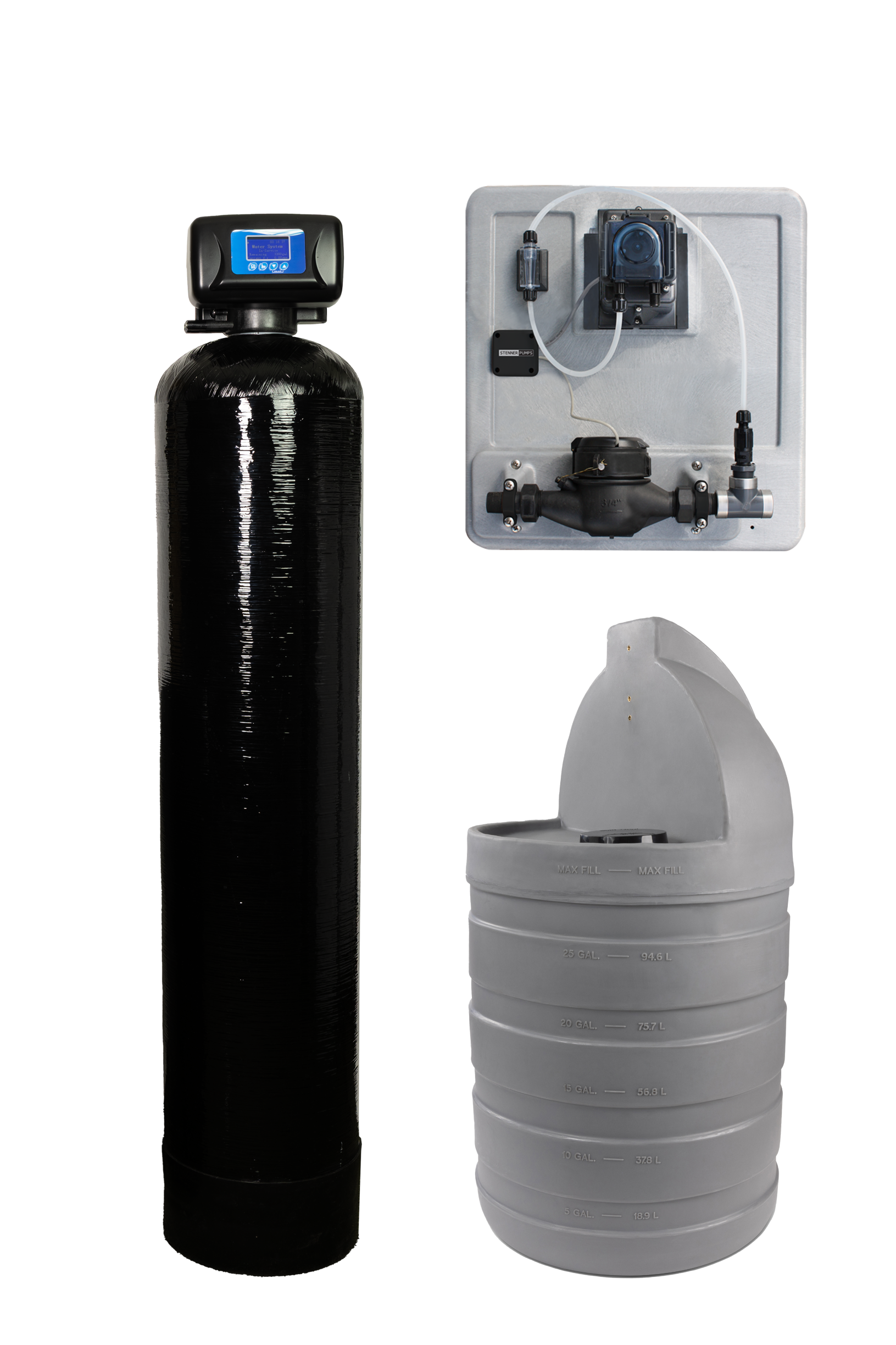

Pro Peroxide

Iron Filtration System

High iron, sulfur, organics removal. Highest oxidation potential.

Durable Iron Filtration System with Advanced Ceramic Valve.

Hankscraft Runxin’s Pro Peroxide Iron Filtration System removes high levels of iron, sulfur, and organic compounds.

Advanced Ceramic wear parts (disks and seals) in the control valve offer longevity and durability, resulting in reduced system maintenance costs.

The control valve is capable of high flow rates to handle most residential or light commercial applications. These control valves have signal output for external devices, program functions that remain in long-term memory, and 72-hour memory backup should a power outage occur, giving you the confidence that you are receiving a cost-effective, high-quality water treatment solution.

The system’s filtration media is made in the USA and sourced from top-tier manufacturers, offering industry-best quality and reliability.

Iron filtration systems are assembled in the USA for ultimate quality and dependability.

Pro Peroxide Iron Filtration System Features and Benefits

FEATURE:	VALUE TO YOU:
Hydrogen Peroxide Oxidation	Rapidly oxidizes iron, manganese, and hydrogen sulfide to enable efficient downstream filtration and removal.
Clean, Residual Free Water	Hydrogen peroxide decomposes into oxygen and water, leaving no chemical taste, odor, or harmful residuals.
Iron, Manganese & Sulfur Control	Converts dissolved contaminants into filterable solids and eliminates sulfur-related odors for improved water usability.
Precision Metered Injection	Flow-matched peroxide dosing delivers consistent oxidation performance across varying demand conditions.
Automatic Backwashing Filtration	Periodic backwashing removes accumulated oxidized contaminants and maintains long-term system performance.
Durable Advanced Ceramic Wear Components	Aerospace-grade Advanced Ceramic wear parts and seals are designed for extended service life in demanding well water environments.
Integrated Peroxide Reduction	Downstream media reduces excess peroxide prior to distribution, protecting plumbing, fixtures, and appliances.

TECHNICAL SPECIFICATIONS

SPECIFICATION	MODEL 1.5	MODEL 2.0
Service Flow Rate (0–5 ppm ferrous iron)	3–6 GPM	4–8 GPM
Service Flow Rate (5–10 ppm ferrous iron)	1.5–3 GPM	2-4 GPM
Peak Flow Rate (momentary)	8–10 GPM	10–15 GPM
Backwash Flow Rate	3 GPM	4.5 GPM
Inlet/Outlet Connection Size & Type	1″ MPT	1″ MPT
Drain Connection Size/Type	3/8″ Barb	3/8″ Barb
Tank Size	10 × 54	12 × 52
Media Volume	1.5 cu ft	2.0 cu ft
Operating Pressure Range	20–125 PSI	20–125 PSI
Operating Temperature Range	41°F – 122°F	41°F – 122°F
Voltage/Power Requirement	110/220 VAC, 60 Hz	110/220 VAC, 60 Hz
Max Iron	8 ppm	10 ppm
Max Manganese	0.5 ppm	0.5 ppm
Max Hydrogen Sulfide (H₂S)	0 ppm	0 ppm

System Configuration

Single backwashing media tank with hydrogen peroxide injection and post-carbon peroxide reduction
Regeneration Type: Time-based backwash

System configurations are applicable to all models unless otherwise noted.

Water Quality Requirements

Hydrogen peroxide systems rely on controlled oxidation; water outside these limits may require pretreatment. Presence of iron bacteria, oil, or excessive suspended solids can impair system performance. A complete water analysis is required prior to system selection and installation.

Water quality requirements are applicable to all models unless otherwise noted.

WARRANTY COVERAGE

COMPONENT	COVERAGE
Internal Wear Components (Ceramic Seals, Disks)	10 Years
Media Tank (FRP) and Hydrogen Peroxide Tank	10 Years
Control Valve Body	7 Years
Electronics/Other Components	5 Years
Filter Media	Excluded – media life is dependent on water quality, operating conditions, and system programming
Chemical Injection Pump (Stenner)	1 Year

Warranty Notes: Warranty coverage applies when the system is installed and operated within published specifications. Perishable components are not covered due to normal wear associated with chemical exposure and dosing operation.
