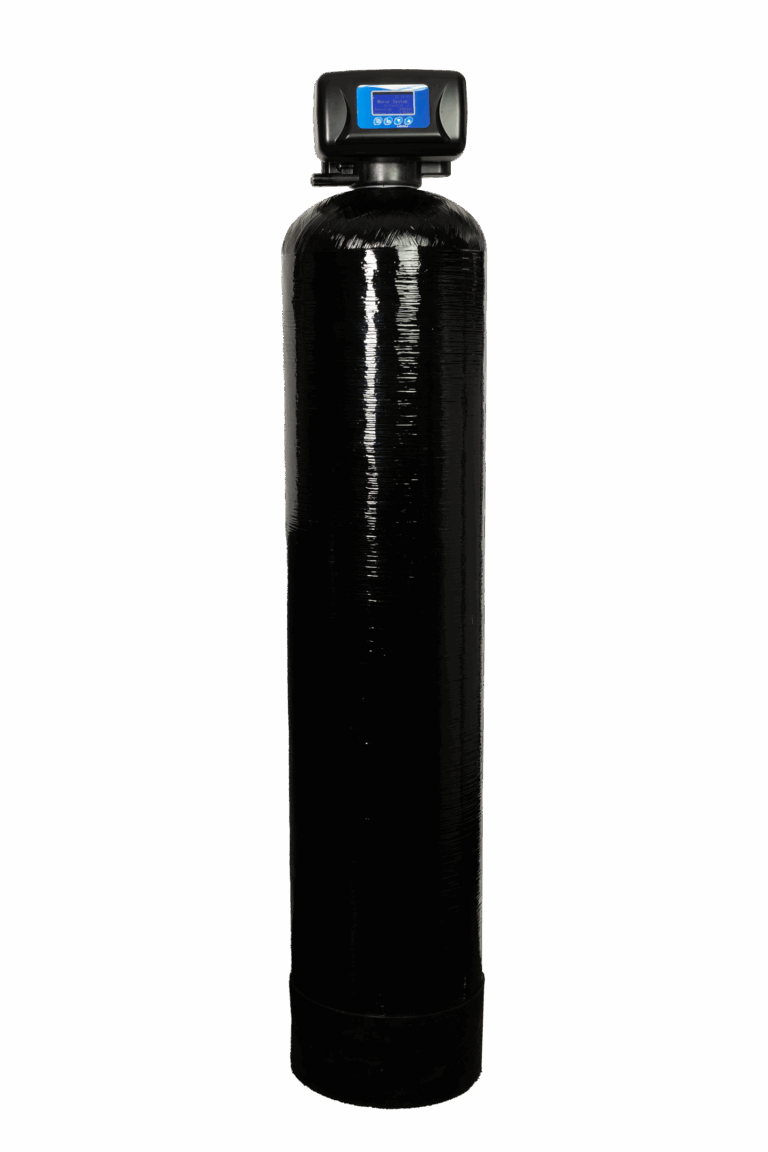

Pro Resin+
Iron Filtration System
For high iron levels.
Durable Iron Filtration System with Advanced Ceramic Valve.
Hankscraft Runxin’s Pro Resin+ Iron Filtration System is an air-regenerated resin system that removes high iron levels.
These systems are designed with Advanced Ceramic valve components that are durable in high-iron water conditions, reducing system maintenance costs. The control valve is capable of high flow rates to handle most residential or light commercial applications. These control valves have signal output for external devices, program functions that remain in long-term memory, and 72-hour memory backup should a power outage occur, giving you the confidence that you are receiving a cost-effective, high-quality water treatment solution.
The filtration media is the industry’s top-quality product, sourced and manufactured in the USA.
Iron filtration systems are assembled in the US, ensuring ultimate quality and dependability.
Pro RESIN+ System Features and Benefits
| FEATURE: | VALUE TO YOU: |
|---|---|
|
Chemical-Free
Operation |
Eliminates the need for costly chemicals such
as chlorine or potassium permanganate during
regeneration. |
|
Advanced Air Soak/
Backwash Cleaning |
Advanced proprietary microbubble air soak and scour
regeneration removes trapped iron without the use
of chemicals, followed by an efficient backwash cycle. |
|
Removes High
Levels of Iron |
Effectively reduces stubborn iron staining on
appliances, dishes, laundry, fixtures, and plumbing
surfaces. |
|
Ultra Efficient |
Lowest wastewater technology minimizes water sent to drain during regeneration. |
|
High Flow Capability |
Resin-based technology delivers high flow at low pressure drop, helping maintain consistent pressure
at every tap. |
|
Cost-Effective
Operation |
Significantly lower operating costs due to chemical-free regeneration and reduced service requirements. |
|
Durable Advanced
Ceramic Wear
Components |
Aerospace-grade engineered ceramic wear parts and seals are designed for extended service life in demanding well water environments. |
TECHNICAL SPECIFICATIONS
| SPECIFICATION | MODEL 1.5 | MODEL 2.0 |
|---|---|---|
|
Service Flow Rate (0–5 ppm ferrous iron) |
3–6 GPM |
4–8 GPM |
|
Service Flow Rate (5–10 ppm ferrous iron) |
1.5–3 GPM |
2-4 GPM |
|
Peak Flow Rate (momentary) |
8–10 GPM |
10–15 GPM |
|
Backwash Flow Rate |
3 GPM |
4.5 GPM |
|
Inlet/Outlet Connection Size & Type |
1″ MPT |
1″ MPT |
|
Drain Connection Size/Type |
3/8″ Barb |
3/8″ Barb |
|
Tank Size |
10 × 54 |
12 × 52 |
|
Media Volume |
1.5 cu ft |
2.0 cu ft |
|
Operating Pressure Range |
20–125 PSI |
20–125 PSI |
|
Operating Temperature Range |
41°F – 122°F |
41°F – 122°F |
|
Voltage/Power Requirement |
110/220 VAC, 60 Hz |
110/220 VAC, 60 Hz |
|
Max Iron |
8 ppm |
10 ppm |
|
Max Manganese |
0.5 ppm |
0.5 ppm |
|
Max Hydrogen Sulfide (H₂S) |
0 ppm |
0 ppm |
WATER QUALITY PARAMETERS & OPERATING CONDITIONS
| PARAMETER | REQUIREMENT |
|---|---|
|
Total Chlorine |
0 ppm |
|
Ferric Iron |
< 0.3 ppm |
|
Hydrogen Sulfide (H₂S) |
0 ppm |
|
Iron Bacteria |
Not present |
|
pH Range |
> 6.5 and < 8.0 |
|
Total Dissolved Solids (TDS) |
< 1,000 ppm |
|
Suspended Solids |
< 1 ppm |
|
Turbidity |
< 5 NTU |
|
Water Temperature |
< 100°F (38°C) |
|
Tannins/NOM |
Negligible |
Water quality parameters and operating conditions are applicable to all models unless otherwise noted.
WARRANTY COVERAGE
| COMPONENT | COVERAGE |
|---|---|
|
Wear Parts (Ceramic Seals) |
10 Years |
|
Media Tank (FRP) |
10 Years |
|
Control Valve Body |
7 Years |
|
Electronics/Other
Components |
5 Years |
|
Filter Media |
Excluded – media life is dependent on
water quality, operating conditions, and
system programming |
